Jay's 1986
Buick Grand National
Originally purchased in 1990, the car was extremely rough for having 36,000
miles. It belonged to a local college student who had a used and abused
this car. Coincidentlly, it was bought for me by my father so I would
have a way to get to college. Not a bad upgrade from my 1973 VW Beetle.
Eventually, this car was passed to my brother Jay so he could get to High
School. Work on this car started soon after I got cracked by a Mustang
GT. After that day, this car went through various appearance and
horse power upgrades. This is the nicest and fastest of the bunch.
Specs:
|

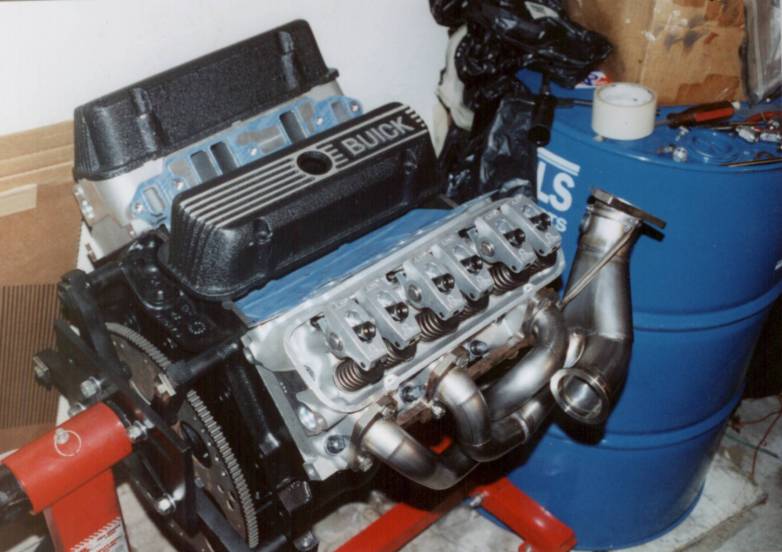

Engine: |
1986 Buick LC2 |
|
Displacement: |
231 cid bored .020 inch |
|
Block: |
Stock with billet main caps and engine girdle |
|
Crank: |
Stock |
|
Rods: |
Stock |
|
Pistons: |
JE, CR 8.25:1 |
|
Camshaft |
Competition Cams Hydraulic 218/218 duration |
|
Rockers: |
Scorpion Pedestal Mount |
|
Heads: |
Champion Aluminum GN 1 14 bolt heads |
|
Engine Management: |
Speed Pro Bank to Bank by Felpro |
|
Ignition: |
Stock, Magnecor 10mm wires, NGK TR6 plugs |
|
Injectors: |
Bendix 72 lb./hr. |
|

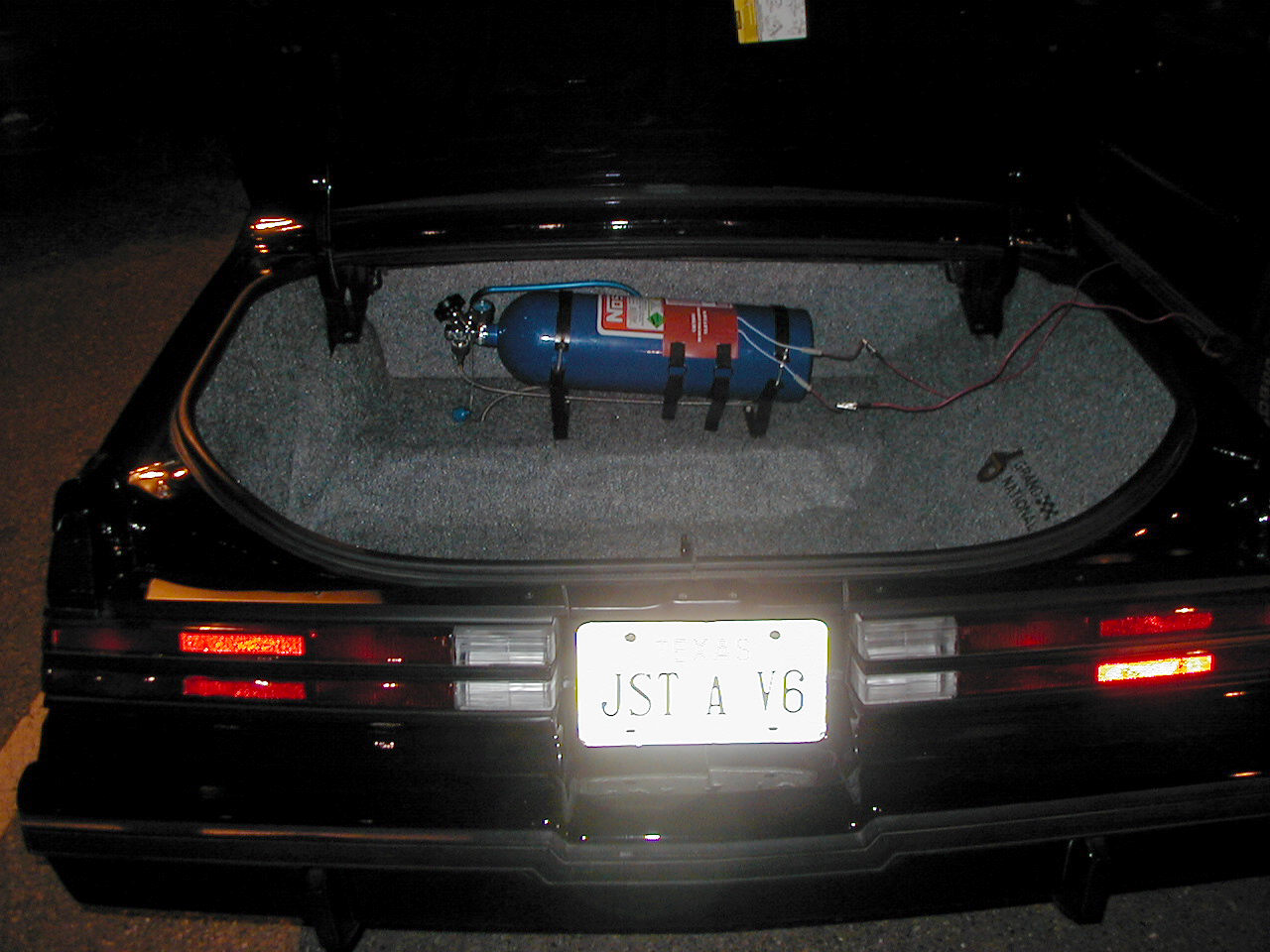

Nitrous |
Home made 75 hp wet system based on Top Gun System |
|
Fuel Pump: |
Quad Air Dual XP |
|
Induction: |
14 inch KN Filter with ram air duct |
|
Turbo: |
Precision Stealth turbo with PTE .85 exhaust housing |
|
Intercooler: |
Eastern Performance Front Mount |
|
Intake: |
BGC/Champion intake port matched |
|
Throttle Body: |
70 mm Kenne Bell Throttle Body |
|
Headers: |
ATR Stainless Steel Headers and Terry Houston 3 inch down pipe |
|
Wastegate: |
High Boost Stock adjustable |
|
Exhaust: |
ATR 3 inch single shot with dump |
|
Transmission: |
200-4R, built by Carlos Sr. |
|
Torque Converter: |
Art Carr 9 1/2 Inch Non Lockup 4000 stall |
|
Front Suspension: |
Eibach springs and KYB shocks |
|
Rear Suspension: |
Kirban springs, Southside lower control arms, air bags, and KYB shocks. |
|
Driveshaft: |
Stock |
|
Axles: |
28-Spline Moser |
|
Differential: |
Stock with Auburn Posi and 3.73 gears. |
|
Wheels: |
Race-Weld Prostars, Firestone 28 1/2 x 10 1/2 slicks
|
|
Finish: |
GM Black, painted by Bert Ogden Buick |
|
Roll Bar: |
6 point BGC Roll Bar |
|
Best 60 ft time: |
1.47 seconds |
|
Best ET: |
10.801 @ 126.573 mph |
Current Status: The car finally broke the 10’s on 1/5/2001. We were faced with the reality that in order to hit the 10’s without NOS, we would need to run about 30 to 31 pounds of boost. Obviously, this means a lot of stress on the motor. We chose to run a 75 shot of NOS and 25 pounds of boost. The Felpro makes it much more safer to run NOS as it can make the fuel corrections when necessary. Anyhow, it feels good to get into the 10’s.
